Detailed 14m aerial working truck with platform for sales

Product Description

Hubei Jiangnan Special Automobile Co., Ltd. specializes in producing and selling all types of aerial vehicles, and is divided into different types according to the selected chassis: Dongfeng, Jiangling, Qingling, Jianghuai, Futian, Dongfeng Nissan aerial vehicles, etc., and can be divided into: 12Meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters overhead vehicles.

 Main  technical perameters

14m three-section aerial work vehicle (national five emission)

Product main technical data

product name: Aerial working truck Overall size (mm): 6760×1990×3000
Total mass :(kg) 5480 Approach/Departure angle (°) 27/14
Rated quality: (kg)   Front/rear suspension (mm): 1065/1895
Maintenance quality: (kg) 5155 The maximum speed (km/h): 100
Emission Standards: EURO V

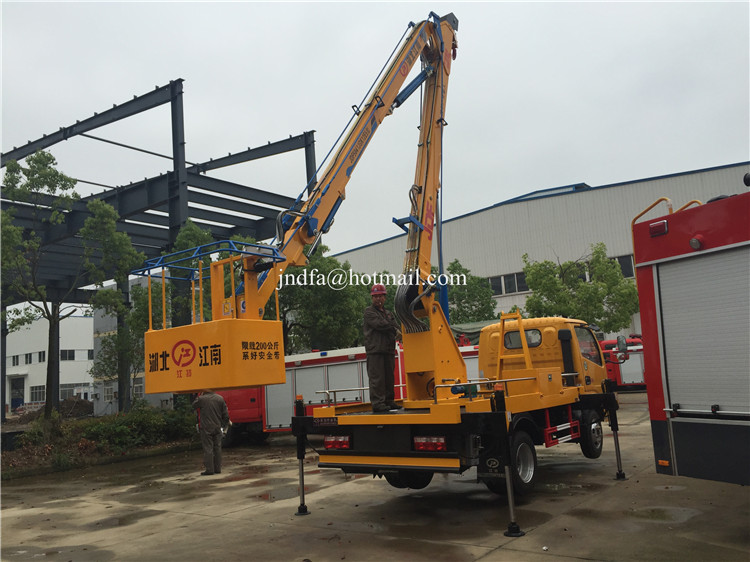

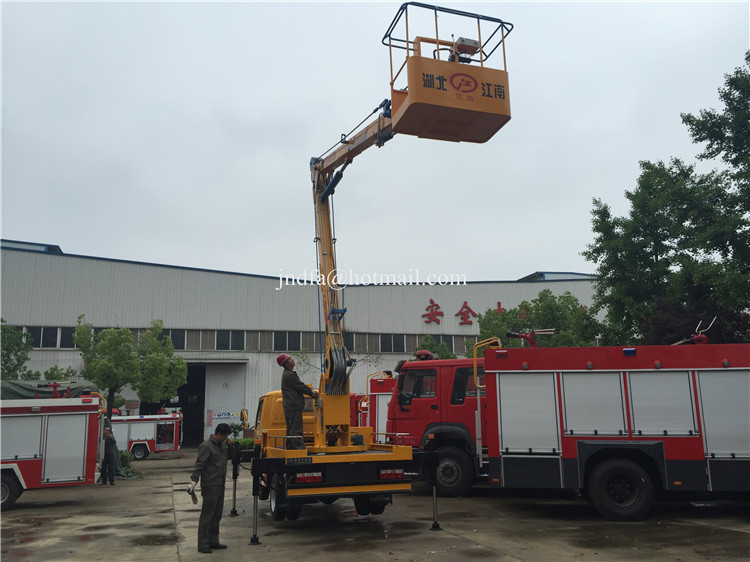

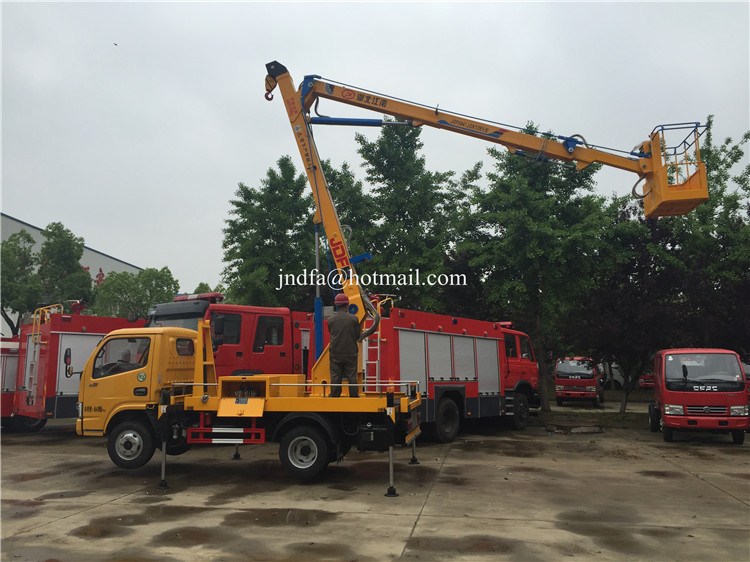

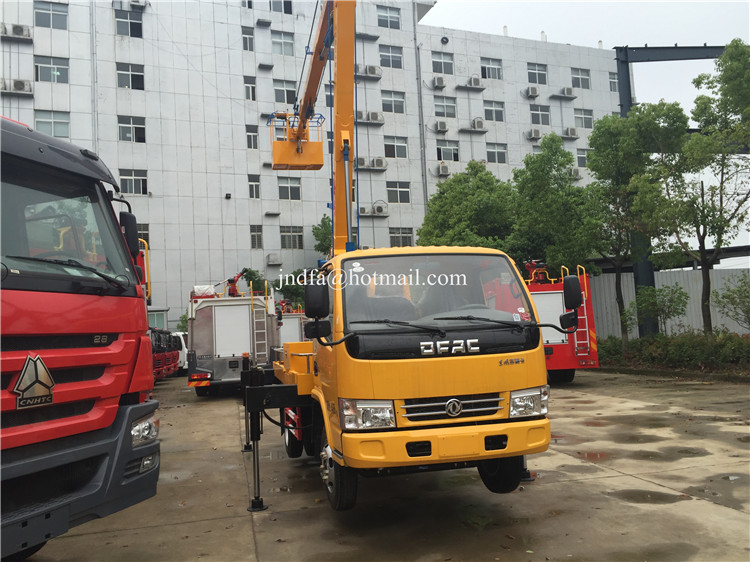

14m three-section boom truck

Chassis parameters

Chassis Model JX1061TSG25 Patch: 284
Axis number: 2 Fuel type: diesel
Wheelbase(mm): 3360 Front track (mm): 1385
Passenger 2+3 Rear track (mm): 1425
Number of tires: 6 Number of leaf springs: 7/5+6
Tire specifications: 7.00R16LT 10PR
Vehicle description: With the chassis optional cab; hook optional; 440mm forward; side protection and rear lower protection material material: Q235, connection: welding and bolted connection; rear lower guard cross-sectional dimensions (width × height): 30 × 200 (mm), height from the ground: 485mm.
14m three-section boom truck

Engine parameters

Engine model Engine manufacturer Displacement (ml) Power (kw)
JX493ZLQ5 Jiangling Motors Co., Ltd. 2771 85
Description of special functions for aerial vehicles
Working height: 14 meters Maximum working width: 6.5 meters

1.The use of international leading Jiangling high-end chassis to install three-fold arm hydraulic lifting device

2.Environmental protection to the fifth phase emission standard of national motor vehicle (National V)

3.Made of domestic and imported reversing valves and hydraulic cylinders, with stable commutation, flexible and convenient operation, hydraulic system interlocking on and off the car, overload protection, safety cylinder lock

4.Turntable, work bucket double station operation

5.Boom structure is compact, mobility is good, operating range is large

6.Leg and working arm interlock, safe and reliable, to prevent misuse

7.H-type legs, large span, good stability, the legs can be independent expansion and contraction, but also linkage, with support leg flashing lights, for the leg silhouette during work, send a light alarm signal

8.Waterproof switch with limit function, dangerous working condition alarm, superior safety performance

(1)Equipped with 1 ton hook (Hook extension 800-1000mm)

(2)Optional automatic protection system to prevent misoperation

(3)Optional emergency power source, ignition, flameout device

(4)Electronic control system with optional electro-hydraulic proportional speed control, stepless speed regulation, stable operation/electronic control system, optional ground wireless remote control operating system
