Project Description

Special van truck transport of dangerous goods

Product Description

[Main technical parameters]

Total mass (Kg)

4495

Tank volume (m3)



Rated load mass (Kg)

1325,1260

External dimension (mm)

5995x1980x2480

Preparation quality (Kg)

3040

Cargo compartment size (mm)

4120,3800×1840×600

Approach Angle/Angle of departure (°)

20/15

Front/rear suspension (mm)

1040/1647

Number of shaft

2

wheelbase (mm)

3308

Axle weight (Kg)

1800/2695

Maximum speed (Km/h)

80

other

It is suitable for the transport of dangerous goods, mainly used to transport independent packaging container (bottle) of liquefied petroleum gas, butane, acetylene, and ethane, propane, butene, lighters or lighter oiler, carbon dioxide, compressed oxygen (nitrogen, air, helium and argon, neon); Compressed gas, category no. :2.1,2.2. Select and install the rear hydraulic tail plate, the inner length (mm) of the box column plate :3800, the color of the cargo column can be changed, and the position of text spraying can be changed. The length of the rear hydraulic stern plate is 250mm.

[Chassis parameters]

External dimension (mm)

5845×1980×2160

Number of tires

6

Approach Angle/Angle of departure (°)

20/18

Tire size

7.00-16 8PR,7.00R16 8PR

Number of spring plate

6/6+5

Front track(mm)

1503,1485,1441

Fuel type

diesel

Rear track(mm)

1494,1458

Emission standards

Euro V

Engine model

Engine manufacturer

Displacement (ml)

Power(Kw)

CY4BK551

YC4FA115-50

D28D11-5DA

D25TCIE2

YN33CRE1

4DW94-95E5

Dongfeng chaoyang chaochai power co. LTD

Guangxi yuchai machinery co. LTD

Dongfeng light engine co. LTD

Kunming Yunnei Power Co., Ltd

Kunming Yunnei Power Co., Ltd

Faw jiefang automobile co. LTD. Wuxi diesel engine plant

3707

2982

2771

2499

3298

2720

75

85

85

96

85

72

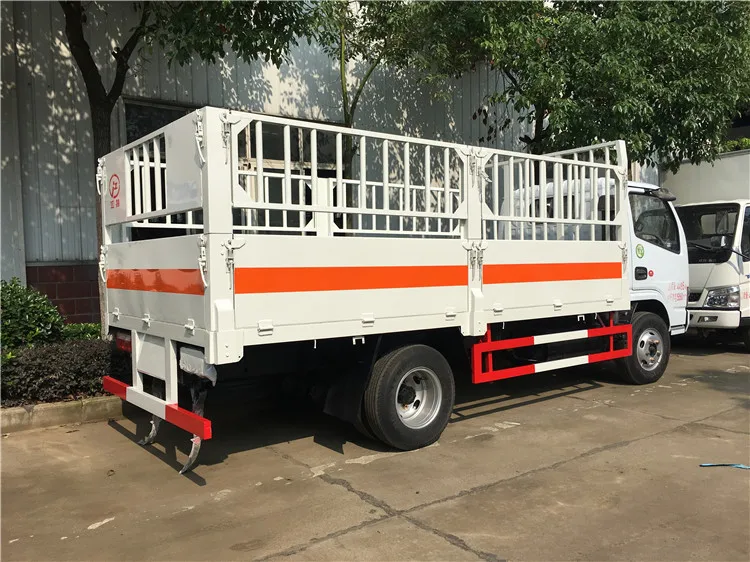

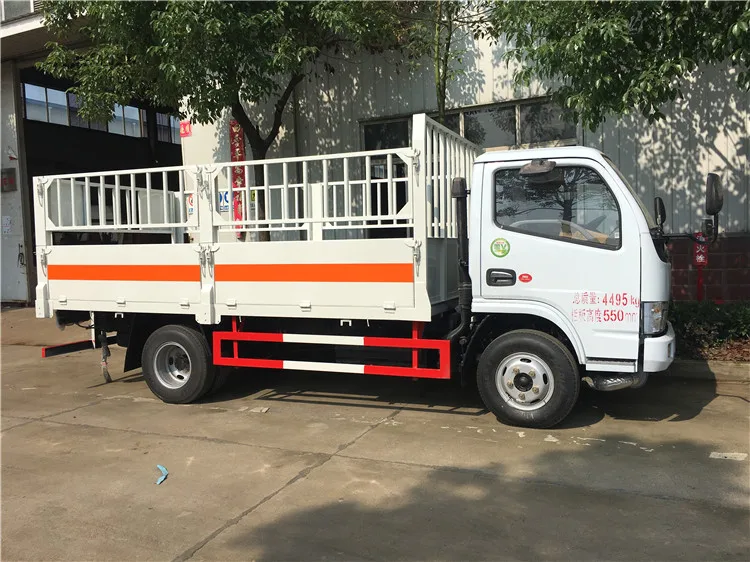

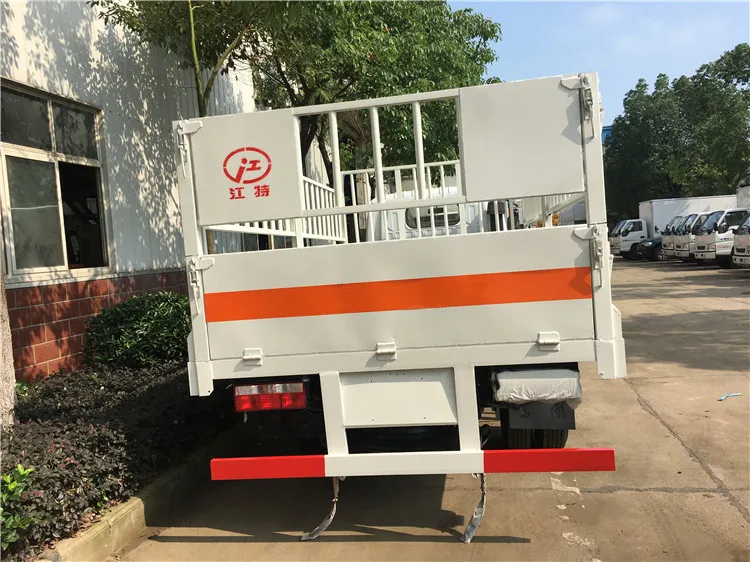

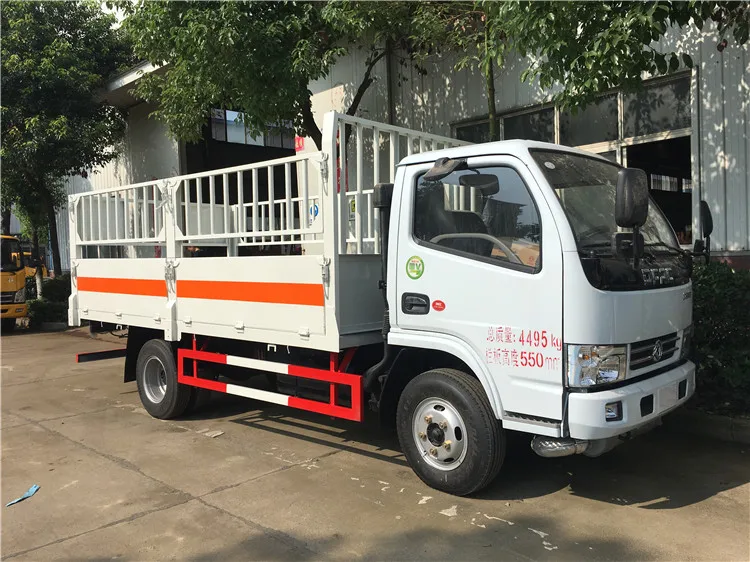

dangerous goods truck1.JPGdangerous goods truck2.JPGdangerous goods truck3.JPGdangerous goods truck4.JPG



company show

Howo big type fire engine firetruck for sales

Howo big type fire engine firetruck for sales

Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship
