Project Description

Mini light HCQ5032XZWSH5 miscellaneous dangerous goods van

Product Description

HCQ5032XZWSH5 miscellaneous dangerous goods van

[Main technical parameters]

Total mass (kg)

3495

Tank volume (m3)



Rated mass (kg)

1185,1315

Overall size (mm)

5150X1775X2500

Cube weight (kg)

2180,2050

Cargo size (mm)

3300X1675X1600

Approach/departure Angle (°)

17/12

Front/rear suspension (mm)

1080/1200,1080/1420

Number of axes

1300/2195

Max speed

80

Comments

1. The top of the carriage is closed and cannot be opened;

2. With the chassis to select the fog lamp and side turn lamp, select the front panel and grille, and select the half cab; Install the front exhaust pipe, the front disc brake and the drive recorder with the function of satellite positioning.

3. The vehicle is a dangerous cargo transport vehicle specially designed for transporting waste mixtures in separate containers (bottles).

4. The truck only USES radial tire, and the fuel consumption of engine D19TCIE10 is 8.3l /100km.

[Chassis technical parameters]

Number of axes

2

Number of tires

 6

Wheelbase (mm)

 2500,2650,2800

Tire size

 6.00-13 8PR,6.00-14 8PR,185R14 6PR

Number of spring plate

 3/5

Front track(mm)

 1270,1340,1316

Fuel type

 diesel

Rear track(mm)

 1180,1223,1223

Emission standards

Euro V

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

 D19TCIE10

Kunming Yunnei Power Co., Ltd

 1910

 70

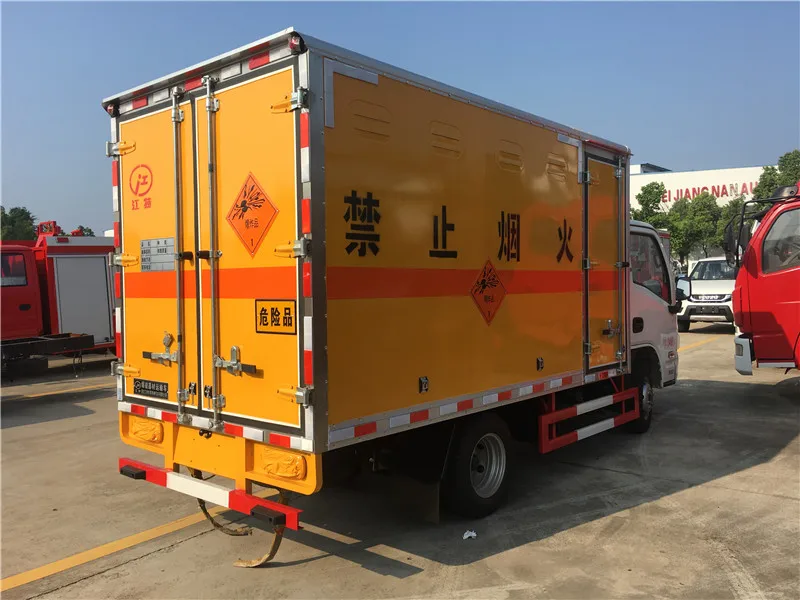

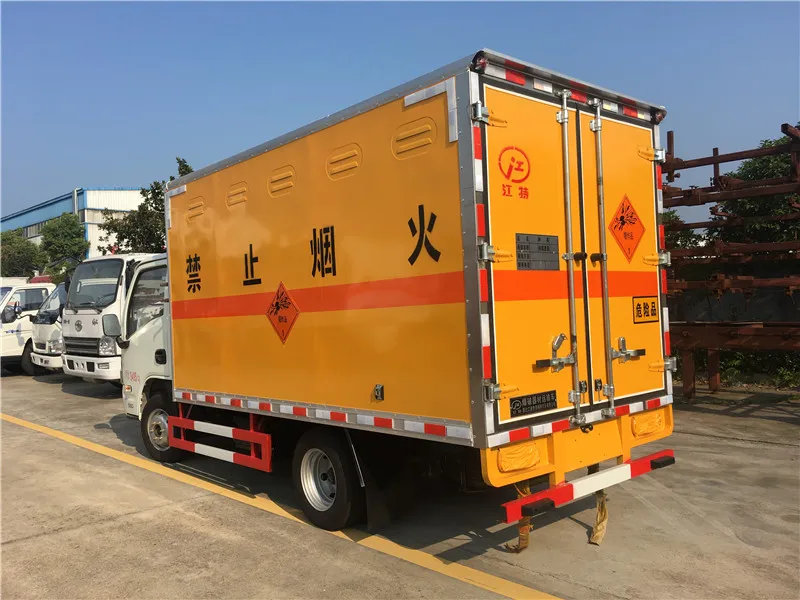

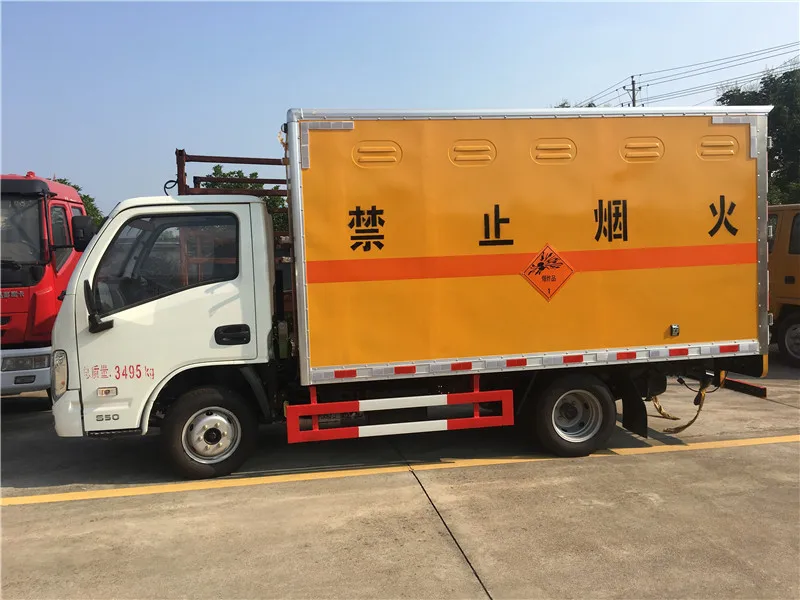

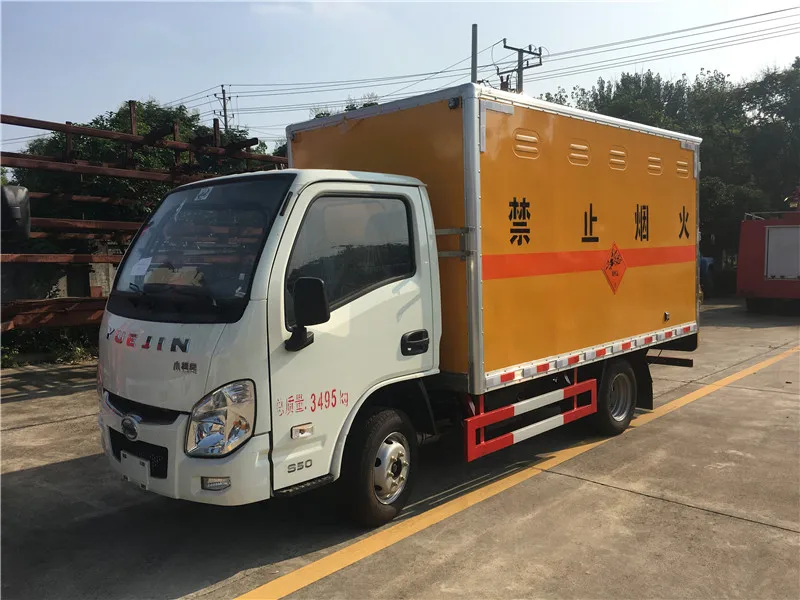

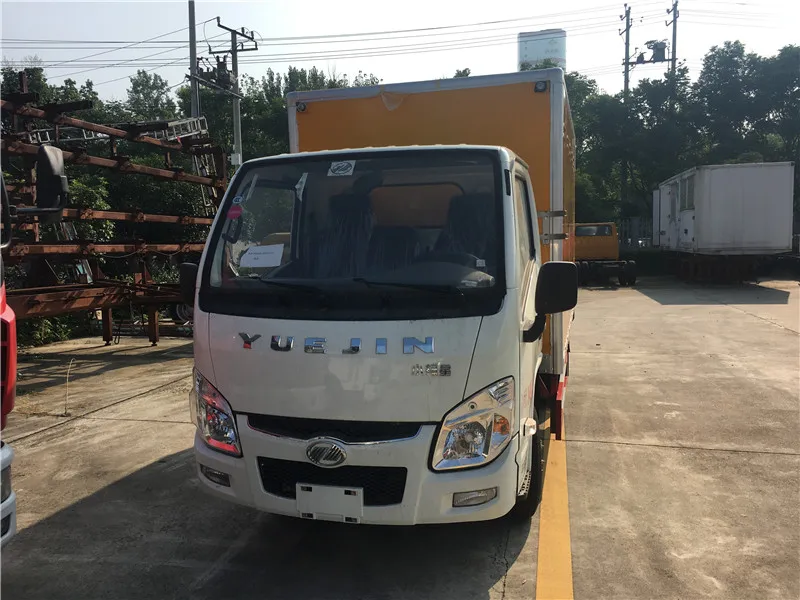

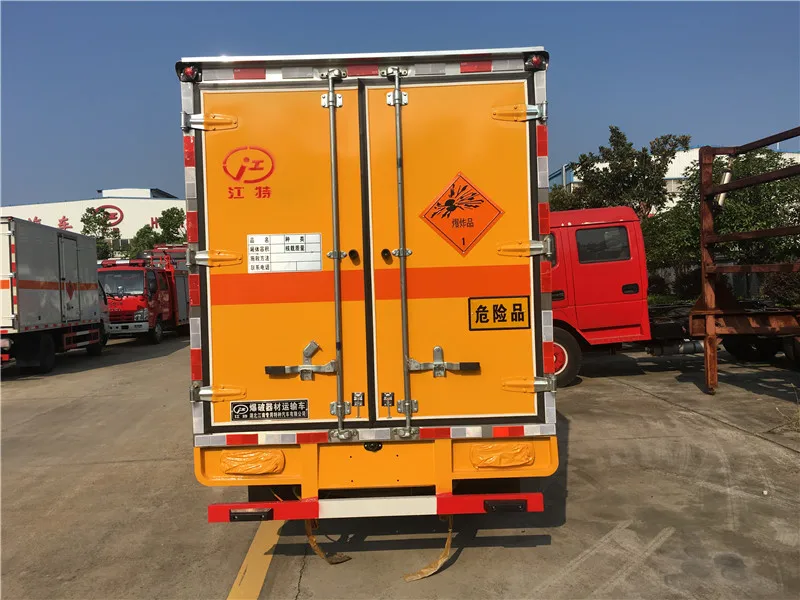

dangerous goods van1.JPGdangerous goods van2.JPGdangerous goods van3.JPGdangerous goods van4.JPGdangerous goods van5.JPGdangerous goods van6.JPG

Product  advantage:



1.Factory export department directly sale

2, Export experience more than 12 years

3.Cheap / competitive price. good price high quanlity ,you get more than your paid

4.With CCC,ISO9001

5. The heart of the service, rational design and simple to handle


We are professional manufacturer for many kind of special trucks,such as

dump truck,fuel tanker truck ,garbage truck,refrigerator truck,truck with

 crane,fire fighting truck,mixer truck etc.
