New brand 16 m three boom operation aerial platform truck

Aerial working truck is also called high altitude operation truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.

The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.

Main Parameter as bellow:

Rated mass

Total mass

6810

Cube weight

6485

Fuel type

diesel

Emission Standards

EURO IV

Axis number

2

Wheelbase

3815

Axis load

2090/4720

Number of leaf springs

8/6+5

Number of tires

6

Tire specifications

7.00-16 14PR,7.00R16 14PR

Approach/Departure angle (°)

24/12

Front/rear suspension (mm)

1015/2470

Front track (mm)

1504

Overall size (mm)

7950*2100*3250

Rear track (mm)

1425

Max speed

105

Passengers

2+3

Engine model

Engine manufacturer

Displacement (ml)

Power (kw)

4KH1-TCG40

Qingling Isuzu (Chongqing) Engine Co., Ltd.

2999

88

Comments

Widen front bumper with chassis option; rear extension 650mm; side protection and rear lower guard material: Q235, side guard connection: welded; rear lower guard connection: bolted, cross-section dimensions (width × height ): 30 × 180 (mm), from the ground height: 530mm. ABS model: APG3550500A4, manufacturing enterprises: Zhejiang Asia Pacific Mechanical and Electrical Co., Ltd..

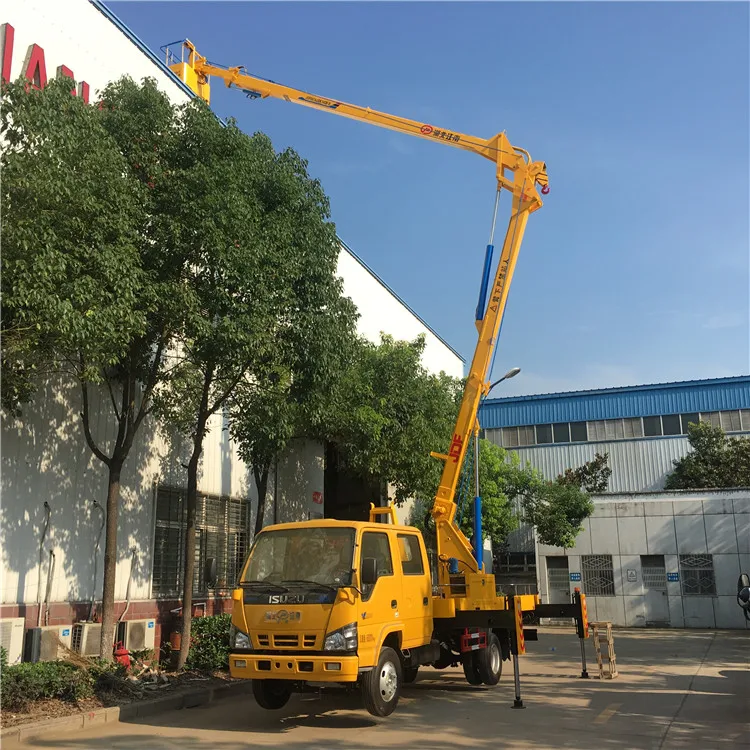

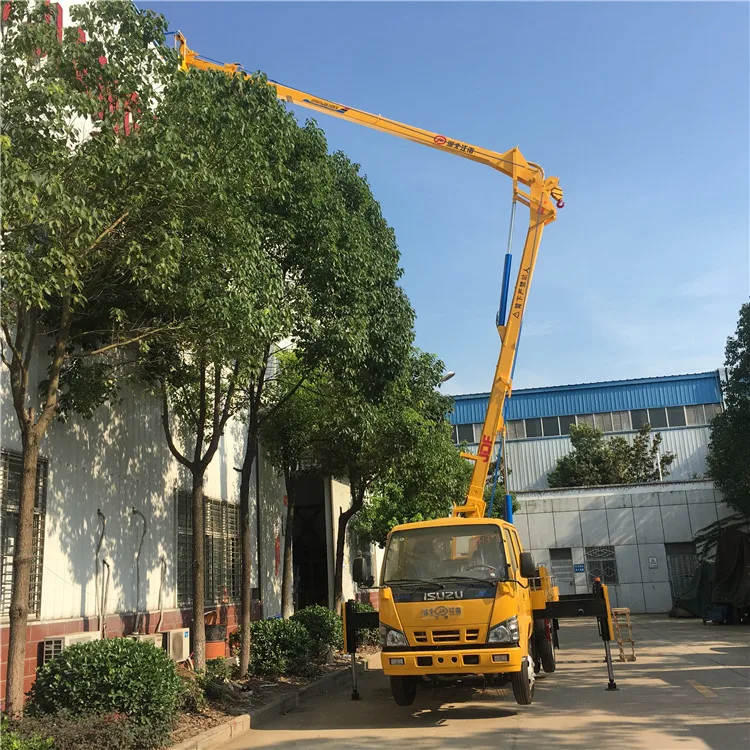

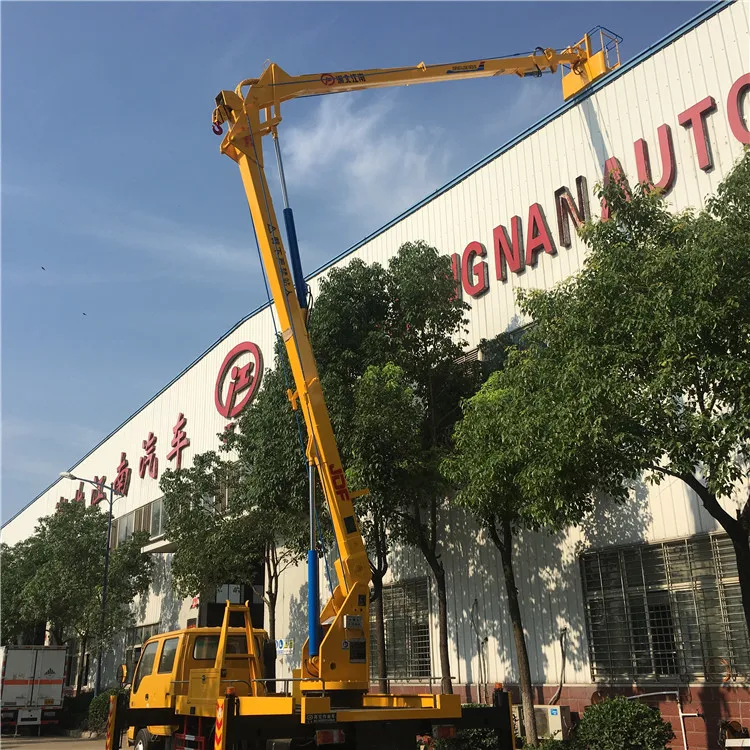

aerial platform truck.JPGaerial platform truck1.JPGaerial platform truck2.JPGaerial platform truck3.JPGaerial platform truck4.JPG

Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship

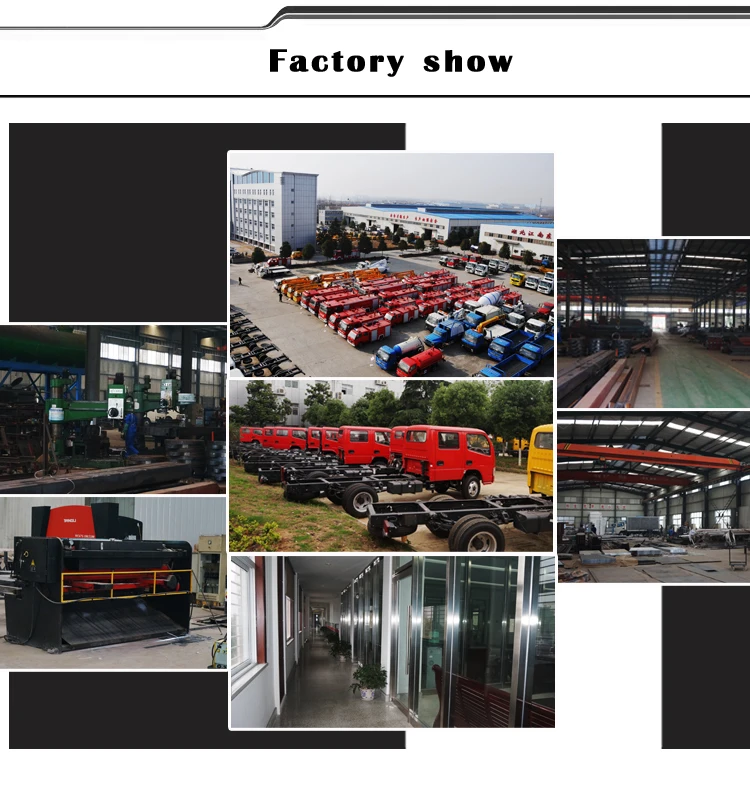

company show
