Project Description

Solid arm loading 14m aerial lift truck

Product Description

Main technical parameters of the product
Product Name:14m Aerial lift Truck
Dimensions (mm): 7950x2100x3250
Total mass (kg): 6810
Rated mass (kg):
Service quality (kg): 6485
Front suspension/rear suspension (mm): 1015/2470
Approach/Departure (°): 24/12
Maximum speed (km/h): 105
Emission standard: EURO IV



Chassis parameters
Fuel Type: Diesel
Number of axes: 2
Wheelbase (mm): 3815
Shaft loading: 2090/4720
Cab ride number: 2+3
Front wheel distance (mm): 1504
Rear wheelbase (mm): 1425
Number of springs: 8/6+5
Number of tires: 6
Tire specifications: 7.00-16, 7.00R16
Description of the vehicle: widen the front bumper with the chassis option; rear extension 650mm; side protection and rear lower protection material Material: Q235, side protection connection: welding; rear lower protection connection: bolt connection, cross-section size (width × height): 30 × 180 (mm), height from the ground: 530mm.



Engine parameters
Engine Model: 4KH1-TCG40
Engine manufacturer: Qingling Isuzu (Chongqing) Engine Co., Ltd.
Displacement (ml): 2999
Power (kw): 88

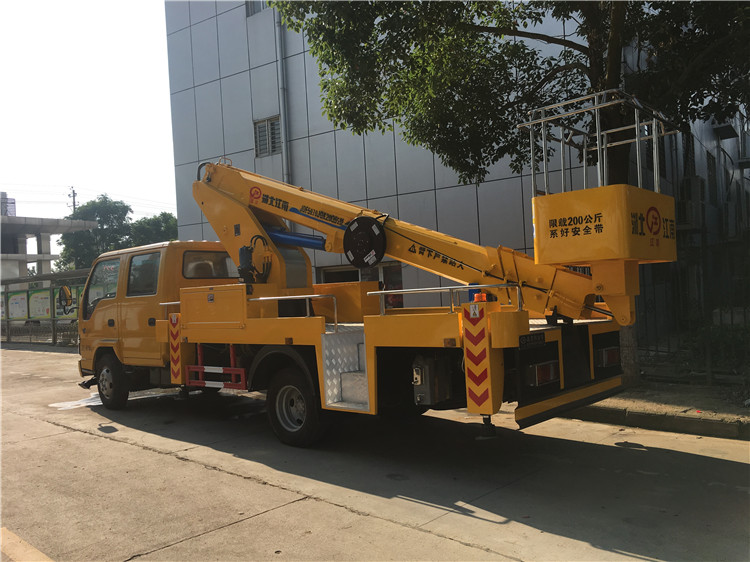

14m aerial lift truck1.JPG14m aerial lift truck2.JPGaerial working truck1.JPGaerial working truck2.JPGaerial working truck3.JPGaerial working truck4.JPGaerial working truck5.JPGaerial working truck6.JPG

Detailed Images
