Project Description

telescopic work platform truck with 18m 3-arm grab crane

We supply you with high quality trucks at a reasonble price , welcome to contact me!

Product Description



[Main technical parameters]
Product name hydraulic aerial cage Product no. ZM7S6558017
Total mass (Kg) 5630 Tank volume (m3)
Rated load (Kg)   Dimensions (mm) 7650×1990×3000
Preparation quality (Kg) 5305 Cargo compartment size (mm) ××
Approach Angle/Angle of departure (°) 27/13 Front suspension/rear suspension (mm) 1065/1885
Number of shaft 2 The wheelbase (mm) 3360
Axle weight (Kg) 1990/3640 Maximum speed (Km/h) 100
Other Optional cab with chassis; The hook is optional; The front extension is 820mm, and the rear reaches 520mm; Material of side protection and backside protective device :Q235, connection mode: welding and bolt connection; The rear lower protective device section size (width x height):30 * 200(mm), from the ground height :430mm.ABS system model :APG3550500A,ABS system manufacturer :Zhejiang asia-pacific Mechanical& Electronic Co.,Ltd.
[Chassis technical parameters]
Chassis models JX1061TSG25 Chassis name Chassis for cargo vehicles (class ii)
Brand name JMC Production enterprise Jiangling Motors Corporation, Ltd.
Dimensions (mm) 5865×1880×2020 Number of tires 6
Approach Angle/Angle of departure (°) 27/18.5,15/18.5 Tire size 7.00R16LT 10PR
The number of leaf spring plates. 7/5+6 Front wheel (mm) 1385
Fuel type diesel Rear wheel base (mm) 1425
Emission standards euro V
Engine model Engine manufacturers Displacement(ml) Power(Kw)
JX493ZLQ5

JX493ZLQ5A

Jiangling Motors Corporatio, Ltd.

Jiangling Motors Corporation, Ltd.

2771

2771

85

85

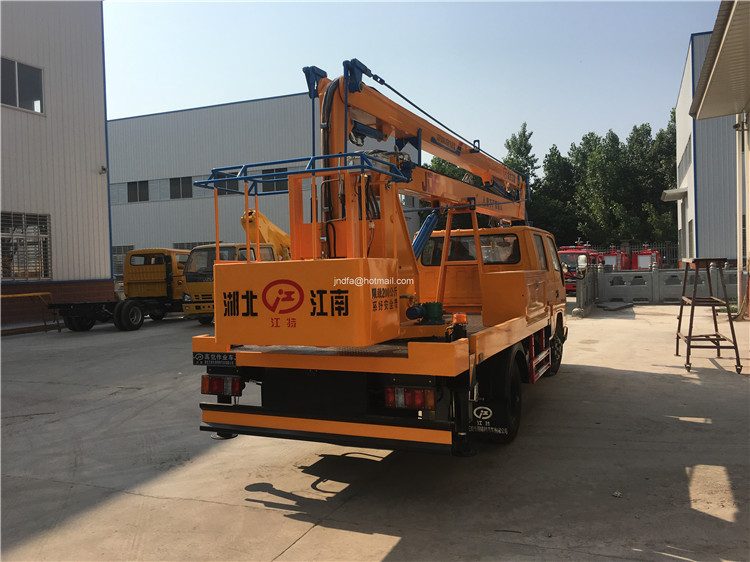

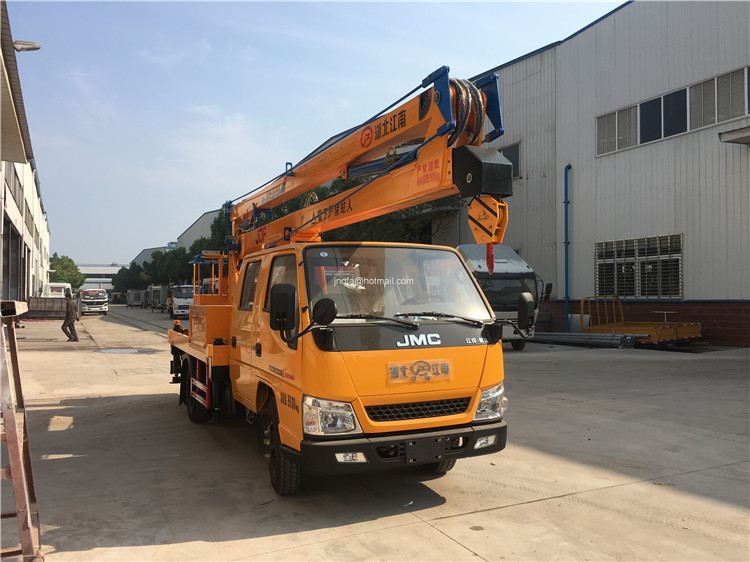

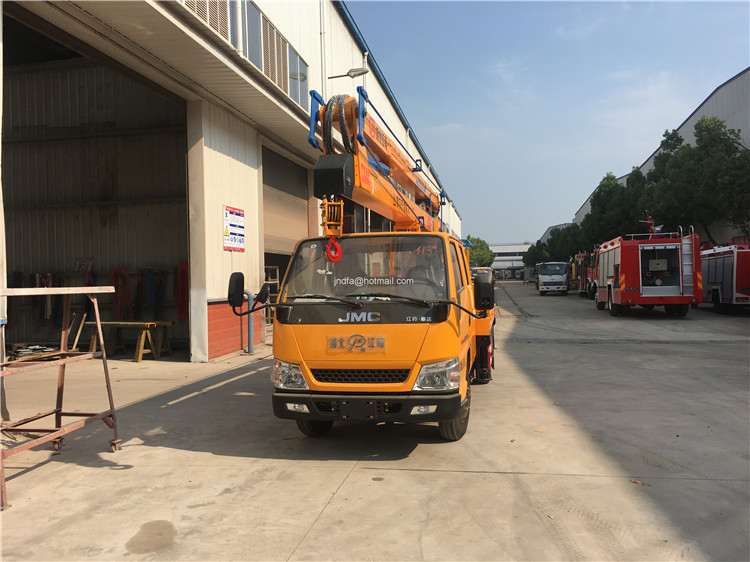

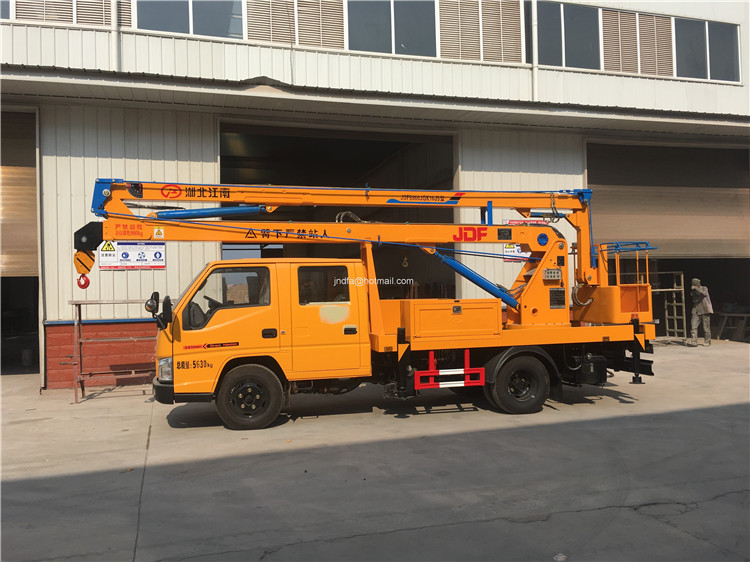

work platform truck1.JPGwork platform truck2.JPGwork platform truck3.JPGwork platform truck4.JPGwork platform truck5.JPGwork platform truck6.JPGwork platform truck7.JPG

Detailed Images

 Products detailsRelated Products

Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship
