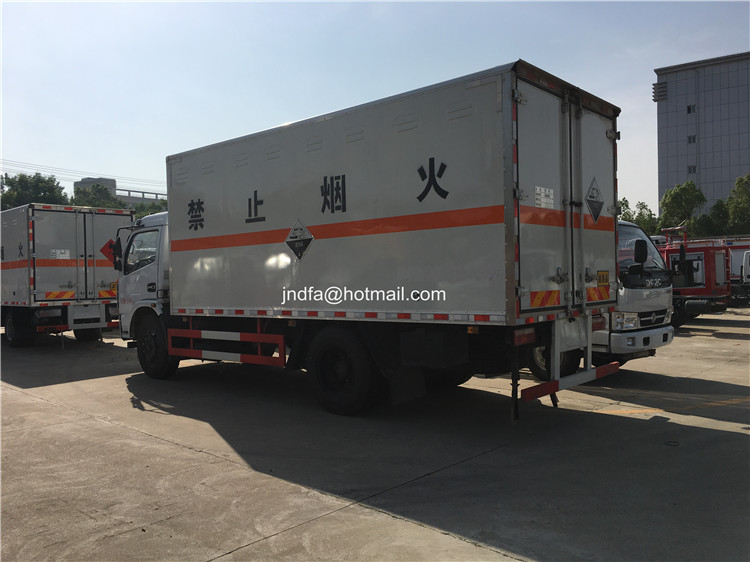

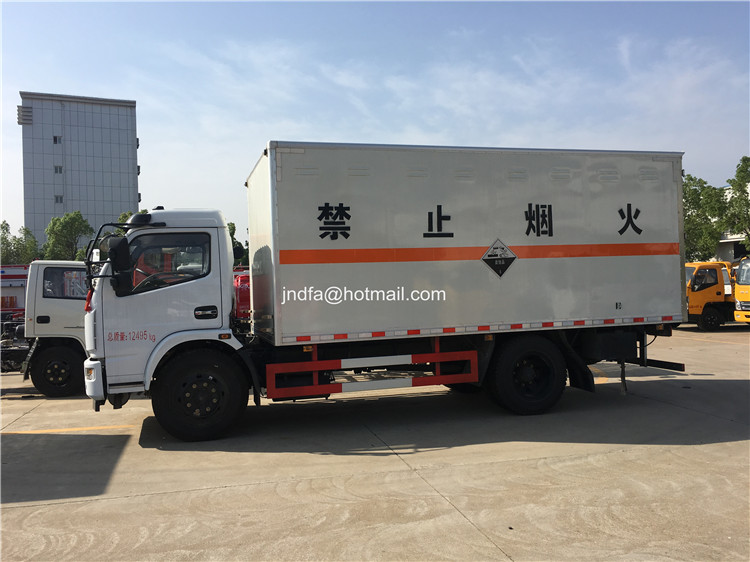

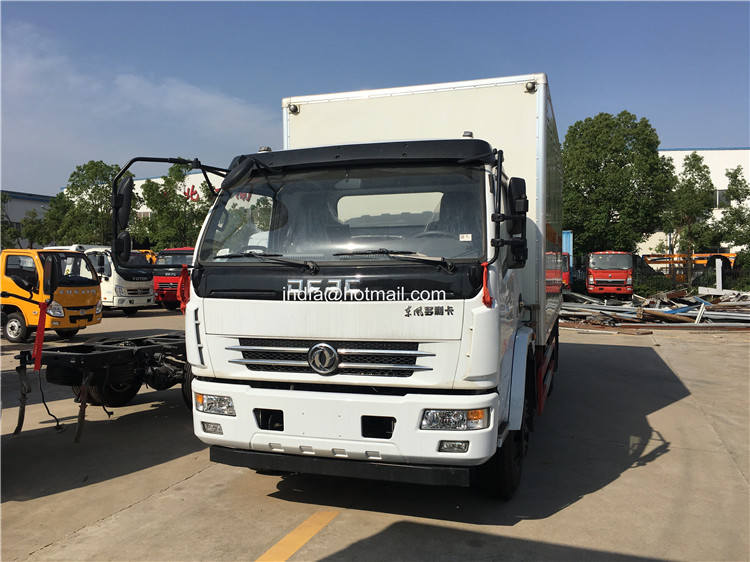

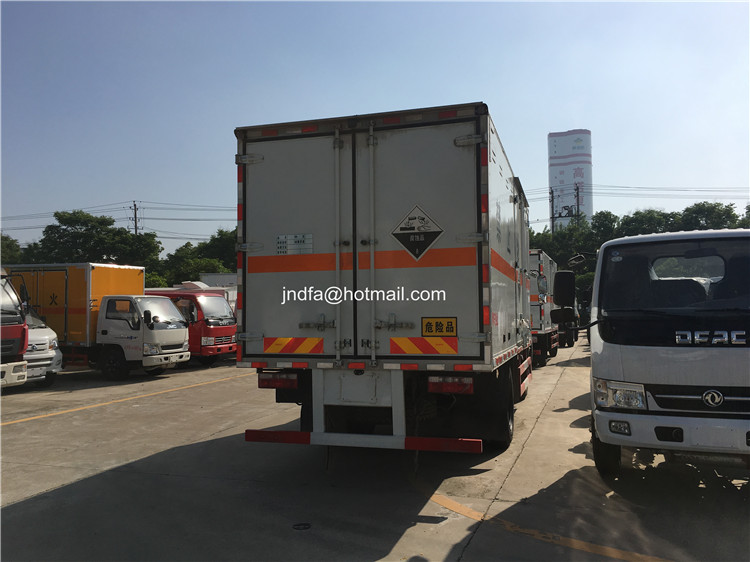

13.6ft cargo length fireworks transporter truck

Product Description

Fireworks transporter truck, also known as explosion-proof cars, explosives transport vehicles, detonator transport vehicles, civil explosive equipment transport vehicles, civilian explosive cars, fireworks and firecrackers. It is based on the relevant national ministries and commissions on the blasting equipment transport specifications and user requirements and development and production, product line with the National Defense Technology and Industry Commission, “Blasting Equipment Transporter Safety Technical Conditions” requirements. The car body adopts cold rolling steel plate, with flame-retardant foam in the middle, inner plywood, interior aluminum alloy, and is made of four layers of international advanced technology. It is beautiful and durable, with high strength of the box, good impact resistance, fire retardant, and ventilation prevention. Rain, anti-static spark, standard smoke alarm and burglar alarm function. Full range of models standard: front disc brake, ABS, speed limit device, optional driving recorder.

[Main technical parameters ]
Product name		fireworks transporter		Product brand	/
Total mass		7350		Tank volume (m3)
Rated mass		3000		Overall sizes	5995×2095×2900
Cube weight		4155		Cargo sizes	4150×1960×1800
Approach / departure angle		15/16		Front suspension/rear suspension	1115/1580
Number of axes		2		Wheelbase(mm)	3300
Axles load(Kg)		2940/4410		Max speed(Km/h)	80
Comments		The top of the car body is closed and cannot be opened: The height of the side/rear protection device is 450mm. The name of the transport item: Explosives, detonators, fireworks, etc. Item number: 1.1B, 1.1D, 1.1G, 1.2G, 1.3G, 1.4 G, etc.; Installation of a tachograph with satellite positioning; equipped with a speed limiter, with a maximum speed of 80km/h. Use only the front disc brake and chassis with ABS. Radial tires only. Use only chassis with front exhaust pipe. Only 4B28ATCI, CY4102-CE4D, D28D11-4DA, YC4FA115-40, YN38CRD2, and ZD30D13-4N engines were used; the corresponding fuel consumption values were 17.80, 17.94, 18.04, 17.82, 18.13, and 17.89, respectively. With the optional chassis cab. Optional door does not open the body.
[Chassis technical parameters]
Chassis model			DFA1070SJ20D5	Chassis name	Truck Chassis (Class 2)
Overall sizes (mm)			5895×1950×2190	Number of tires	6
Approach / departure angle (°)			27/22	Tire specifications	7.50-16 14PR,7.50R16
Number of leaf springs			6/6+5,8/9+5	Front track(mm)	1586
Fuel type			diesel	Rear track(mm)	1530
Chassis emission standards			EURO V
Engine model	Engine manufacturer			Displacement(ml)	Power(kw)
4B28ATCI D28D11-4DA	Changchai Company Limited Dongfeng Light Engine Co., Ltd.			2834 2771	80 85

Product details:

We are professional manufacturer for many kind of special trucks,such as

dump truck,fuel tanker truck ,garbage truck,refrigerator truck,truck with

crane,fire fighting truck,mixer truck etc.

company show

Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship

Trade Shows

Product advantage:

1.Factory export department directly sale

2, Export experience more than 12 years

3.Cheap / competitive price. good price high quanlity ,you get more than your paid

4.With CCC,ISO9001

5. The heart of the service, rational design and simple to handle
