Project Description
Forland Flat Bed Wrecker，Recovery Truck
Forland Flat Bed Wrecker，Recovery Truck
Forland Recovery Truck Engine Model 4HK1-TCG40, 106kw ,139HP,5193CC
JDFtruck Is The Chinese Forland Recovery Truck Manufacturer Forland Recovery Truck Quality Have Beed Approved By CCC And ISO9001:2000 Quality certificate ,Contact us: jndfa@hotmail.com.
Our Forland Recovery Truck Have A Wide Range Of Chassis Brand Optional , Different Load Volume To Choose .
| Vehicle Name: | Forland Recovery Truck | Vehicle Category: | Forland Recovery Truck | ||
| Chinese Brand: | Forland JDFTRUCK | English brand : | Forland JDFTRUCK | ||
| Notice batch : | 230 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| YZ4DB1-30 | Weichai power yangzhou diesel engine co., LTD | 4087 | 95 | ||
| Engine brand : | Forland | Fuel type: | Diesel (mm) | ||
| Dimensions: | 7350×2320×2540(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 8495(Kg) | Payload: | 0 | ||
| Curb weight: | 5200(Kg) | Rated Quality: | (Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 3( People ) | ||
| Approach / departure angle : | 21/12(°) | Front / rear overhang : | 1120/2430(mm) | ||
| Axle load: | 3400/5095 | Wheelbase: | 3800(mm) | ||
| Number of axes: | 2 | Maximum speed: | 95(km/h) | ||
| Fuel consumption: | Spring: | 9/11+7 | |||
| Number of tires : | 6 | Tire Size: | 7.50-16,8.25-16,7.50R16,8.25R16 | ||
| Front track: | 1688 | Rear track: | 1630,1600 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB17691-2005(Ⅲ),GB3847-2005 | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | LVBV4JDB××××××××× LVBV4JBB××××××××× | ||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | Forland Flat Bed Wrecker，Recovery Truck | ||||
Forland Flat Bed Wrecker，Recovery Truck Chassis
| Forland truck chassis |Forland truck chassis BJ1083VDJFA | ||||
| Company Name : | Forland Motor Co., Ltd. | |||
| Chassis Type: | BJ1083VDJFA | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | Forland | |
| Zip Code: | 102206 | Catalog number : | 9 | |
| Specifications: | Length:6810Width:2100 eight:2210 | |||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005(Ⅲ),GB3847-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 3800 | |
| Spring: | 9/11+7 | Number of tires : | 6 | |
| Tire Size: | 7.50-16,8.25-16,7.50R16,8.25R16 | Tread : | Front track1688 Reartrack1630,1600 | |
| The total mass : | 8495 | |||
| Curb weight: | 3820 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 3 | ||
| Close to the departure angle: | 21/20 | Rear suspension : | 1120/1890 | |
| Maximum speed: | 80,95 | |||

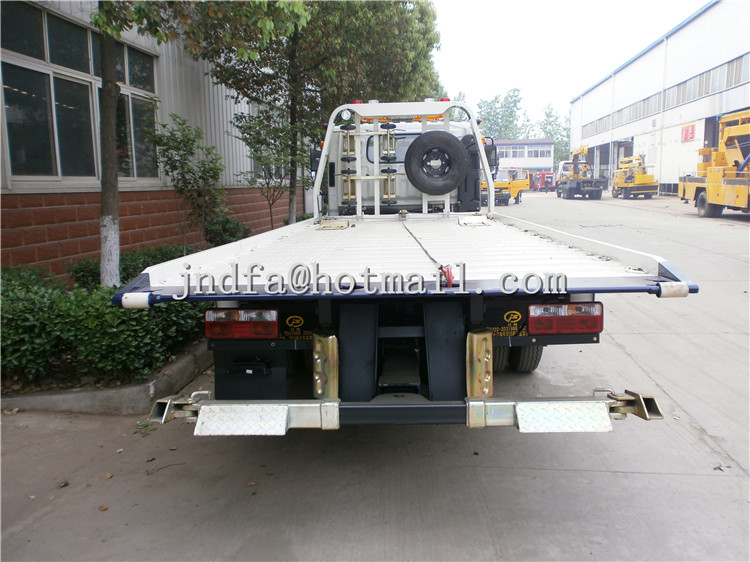

| Picture: | Forland Flat Bed Wrecker，Recovery Truck | |||
Forland Flat Bed Wrecker，Recovery Truck
| Forland truck chassisForland truck chassis BJ1083VDJFA Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| YZ4DB1-30 | Weichai power yangzhou diesel engine co., LTD | 4087 | 95 |
| Identification code : | |||
