Project Description

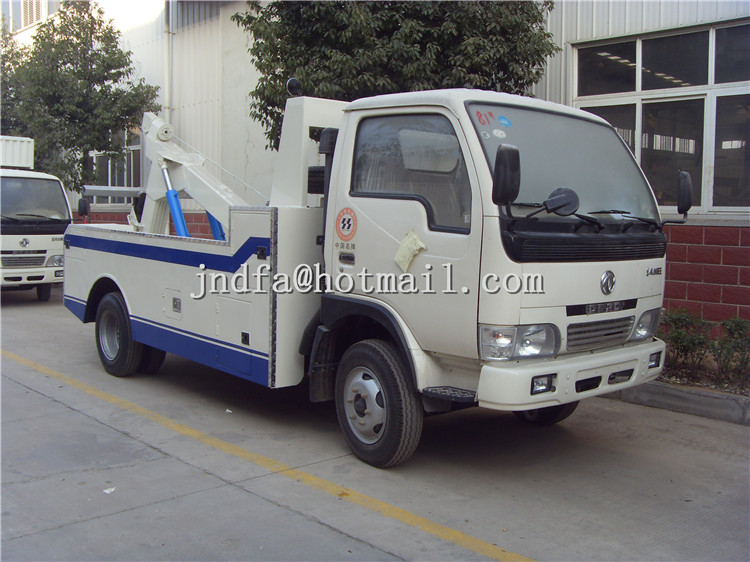

Dongfeng xiaobawang 4X2Truck,Recovery Truck
flatbed tow truck （1 lift 2, 1 lift 3）
As one of biggest truck manufacturer in China , we can also produce following trucks and their upper – Only truck bodies for you is available.
Model：1 lifting 2 flatbed wrecker, 1 lifting 3 flatbed wrecker . It could carry two or three cars at the same time.
Destination： Wrecker tow truck is used to transport motor vehicles to another location (generally a repair garage), or to recover vehicles which are no longer on drive.And equipped with lifting winch device and wheel bracket which
can lift, towing,back load and transport.
Usage：It is widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
| Vehicle Name: | Dongfeng Recovery Truck | Vehicle Category: | Dongfeng Recovery Truck | ||
| Chinese Brand: | Dongfeng JDFTRUCK | English brand : | Dongfeng JDFTRUCK | ||
| Notice batch : | 227 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| CY4102-C3F | Dong feng chaoyang chaoyang co., LTD | 3856 | 70 | ||
| Engine brand : | Dongfeng | Fuel type: | Diesel (mm) | ||
| Dimensions: | 5995×1950×2250(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 4495(Kg) | Payload: | 0 | ||
| Curb weight: | 3700(Kg) | Rated Quality: | (Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 2( People ) | ||
| Approach / departure angle : | 19/15(°) | Front / rear overhang : | 1032/1663(mm) | ||
| Axle load: | 1785/2710 | Wheelbase: | 3300(mm) | ||
| Number of axes: | 2 | Maximum speed: | 95(km/h) | ||
| Fuel consumption: | Spring: | 8/9+5,6/8+4 | |||
| Number of tires : | 6 | Tire Size: | 7.00-16,6.50-16,7.00R16,6.50R16 | ||
| Front track: | 1506,1585 | Rear track: | 1442,1530 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB3847-2005(Ⅲ),GB17691-2005 | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | LGDCH81G××××××××× | ||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | Dongfeng xiaobawang 4X2Truck,Recovery Truck | ||||
Dongfeng xiaobawang 4X2Truck,Recovery Truck chassis
| Dongfeng truck chassis |Dongfeng truck chassis EQ1040TJ20D3 | ||||
| Company Name : | Dongfeng Motor Co., Ltd. | |||
| Chassis Type: | EQ1040TJ20D3 | Chassis Category: | II | |
| Product Name: | Truck chassis | Product Brand: | Dongfeng | |
| Zip Code: | 441004 | Catalog number : | 3 | |
| Specifications: | Length:5820 Width:1940 Height:2080 | |||
| Fuel Type: | Diesel fuel | According to the standard : | GB3847-2005(Ⅲ),GB17691-2005 | |
| Steering Type : | Steering wheel | |||
| Number of axes: | 2 | Wheelbase: | 4250,4250,4400 | |
| Spring: | 8/9+5,6/8+4 | Number of tires : | 6 | |
| Tire Size: | 7.00-16,6.50-16,7.00R16,6.50R16 | Tread : | Front track 1810
Rear track 1740 |
|
| The total mass : | 4495 | |||
| Curb weight: | 2265 | Quality Trailer : | ||
| Semitrailer saddle : | Front passenger : | 2,3 | ||
| Close to the departure angle: | 19/15 | Rear suspension : | 1032/1488 | |
| Maximum speed: | 80 | |||
| Picture: | Dongfeng xiaobawang 4X2Truck,Recovery Truck | |||
Dongfeng xiaobawang 4X2Truck,Recovery Truck
| Dongfeng truck chassis |Dongfeng truck chassis EQ1040TJ20D3 Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| CY4102-C3F | Dong feng chaoyang chaoyang co., LTD | 3856 | 70 |
| Identification code : | |||
| Other: | Dongfeng xiaobawang 4X2Truck,Recovery Truck | ||
