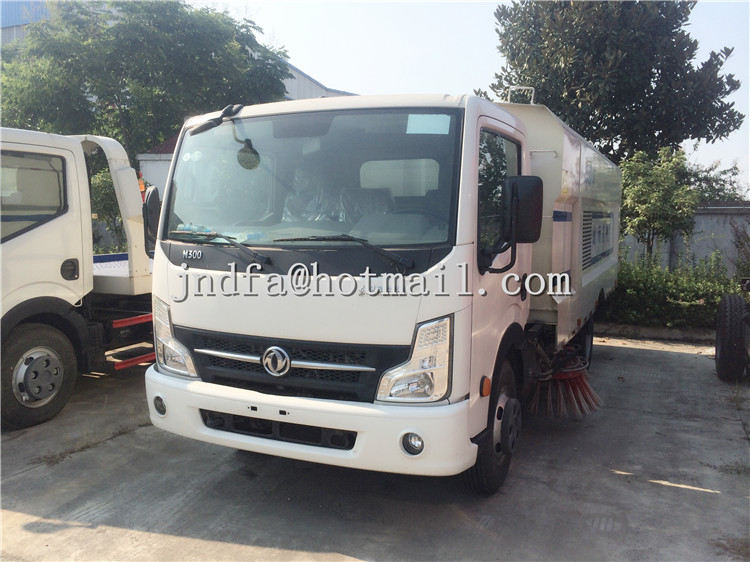

DongFeng KaiPuTe Sweeper Road Clean Truck,Street Sweeper

Dongfeng Street Sweeper Truck Engine Model ZD30D13-4N , 96kw ,130HP,2953CC

JDFtruck is the Chinese Street Sweeper Truck manufacturer Dongfeng Street Sweeper Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.

Our DongFeng Street Sweeper Truck have a wide range of chassis brand optional , different load volume to choose .

DongFeng KaiPuTe Sweeper Road Clean Truck,Street Sweeper

Vehicle Name:	DongFengStreetsweeper		Vehicle Category:		DongFeng Street Sweeper Truck
Chinese Brand:	DongFeng JDFTRUCK		English brand :		DongFeng JDFTRUCK
Notice batch :	286		Exemption:		No
Engine	Engine Manufacturer		Displacement (ml)		Power (kw)
ZD30D13-4N	Dongfeng light engine co., LTD		2953		96
Engine brand :	Dongfeng		Fuel type:		Diesel (mm)
Dimensions:	6200×2140×2620(mm)		Compartment Size :		× × (mm)
The total mass :	7320(Kg)		Payload:		0
Curb weight:	5325(Kg)		Rated Quality:		1800(Kg)
Quality Trailer :	(kg)		Semitrailer saddle :
Rated capacity :	( People )		Cab seats :		2( People )
Approach / departure angle :	22/13(°)		Front / rear overhang :		1053/1797(mm)
Axle load:	6000/10000		Wheelbase:		3350,3308(mm)
Number of axes:	2		Maximum speed:		105(km/h)
Fuel consumption:			Spring:		6/5+5
Number of tires :	6		Tire Size:		7.00-16 14PR,7.00R16 14PR,7.50-16 14PR,7.50R16 14PR
Front track:	1598,1562,1608		Rear track:		1458,1586,1486
Steering Type :	Steering wheel		Starting method:
Chassis Emission standard:	GB3847-2005, GB17691-2005 National
Transmission Type:	Steering wheel	According to the standard :
Logo Enterprises :	JDFtruck	Release date:		20160919

DongFeng KaiPuTe Sweeper Road Clean Truck,Street Sweeper Chassis

DongFeng truck chassis \|DongFeng truck chassis DFA1070SJ41D6
Company Name :	DongFeng Motor Co., Ltd.
Chassis Type:	DFA1070SJ41D6	Chassis Category:	II
Product Name:	Truck chassis	Product Brand:	DongFeng
Zip Code:		Catalog number :	3
Specifications:	Length:5940 Width:1882 Height: 2225
Fuel Type:	Diesel fuel	According to the standard :	GB17691-2005(Ⅳ),GB3847-2005
Steering Type :	Steering wheel
Number of axes:	2	Wheelbase:	3350,3308
Spring:	6/5+5	Number of tires :	6
Tire Size:	7.00-16 14PR,7.00R16 14PR,7.50-16 14PR,7.50R16 14PR	Tread :	Front track 1598,1562,1608 Rear track 1458,1586,1486
The total mass :	7320
Curb weight:	2350	Quality Trailer :
Semitrailer saddle :		Front passenger :	3
Close to the departure angle:	22/19	Rear suspension :	1053/1537,1053/1579
Maximum speed:	105,80
	DongFeng KaiPuTe Sweeper Road Clean Truck,Street Sweeperper

DongFeng KaiPuTe Sweeper Road Clean Truck,Street Sweeper

DongFeng Street Sweeper Truck chassis DongFeng Street Sweeper Truck chassis DFA1070SJ41D6 Engine Specification
Engine Model	Engine Manufacturer	Displacement (ML)	Power (ML)
ZD30D13-4N	Dongfeng light engine co., LTD	2953	96
