Project Description

 DFAC 8 cbm diesel compressed rubbish vehicle

Product Description

 Compressed rubbish vehicle consist of sealed garbage containers, hydraulic systems, and operating systems. The entire vehicle is fully sealed, self-contained, self-dumping, and sewage in the compression process all enter the sewage chamber, which completely solves the problem of secondary pollution in the garbage transportation process and avoids inconvenience to people. The key components are adopted. Imported parts have the advantages of high pressure, good sealing, convenient operation and safety. After the optional hanging bucket turning mechanism or trash dumping mechanism.

[Main technical parameters]

Product name

compressed rubbish vehicle

Product model

compressed rubbish vehicle

Total Mass(Kg)

16000

Tank volumn(m3)

           8cbm

Rated mass(Kg)

4800

Overall sizes(mm)

8780,8690x2495x3100

Cube weight(Kg)

11005

Cargo sizes(mm)

××

Approach / departure angle (°)

20/14

Front suspension/rear suspension (mm)

1430/2850,1430/2760

Number of axes

2

Wheelbase(mm)

4500,4200

Axles load(Kg)

6000/10000

Max speed(Km/h)

90

Comments

Optional rear turnover mechanism, when the optional rear reversing mechanism corresponds to the length of the external dimensions of 8690mm, corresponding to the rear suspension of 2760mm; optional rear reversing mechanism causes the change of the trim quality parameters in the range of 3%; optional with the chassis Spoiler and front fog lamp; Side guard Material: Q235, Connection: Welding; This vehicle is equipped with a driving recorder.

[Chassis technical parameters]

Chassis model

DFL1160BX4

Chassis name

Cargo chassis

Brand name

Dongfeng

Manufacturer

Dongfeng Motor Corporation Ltd

Overall sizes(mm)

7790,7190,7490×2370,2460

×2760,2760,2840

Number of tires

6

Approach / departure angle (°)

20/18,20/20

Tire specification

10.00-20,10.00R20,

9.00-20,9.00R20

Number of leaf springs

8/10+8,7/9+6

Front track(mm)

1880

Fuel type

diesel

Rear track(mm)

1860,1800

Emissions standards

EURO IV

Engine model

Engine manufacturer

Displacement (ml)

Power(Kw)

ISDe210 40

ISDe180 40

ISDe185 40

EQH180-40

ISB180 40

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Motor Corporation Ltd

Dongfeng Cummins Engine Co., Ltd.

6700

4500

6700

4752

5900

155

132

136

132

132

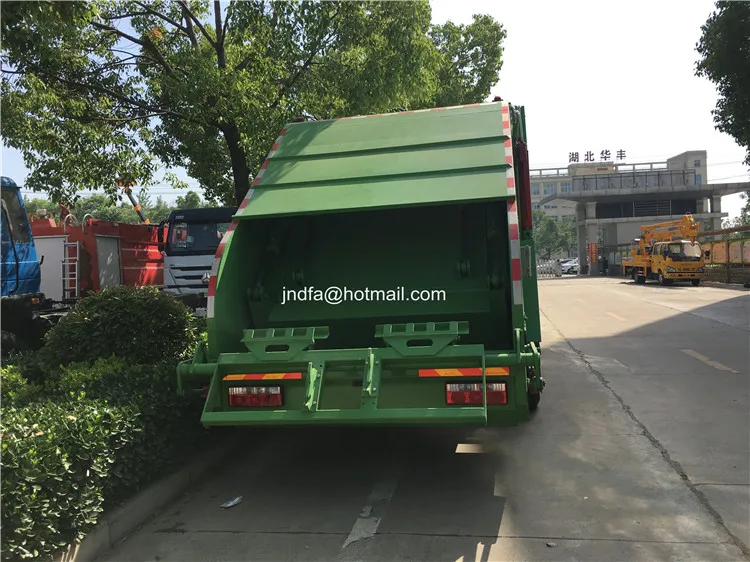

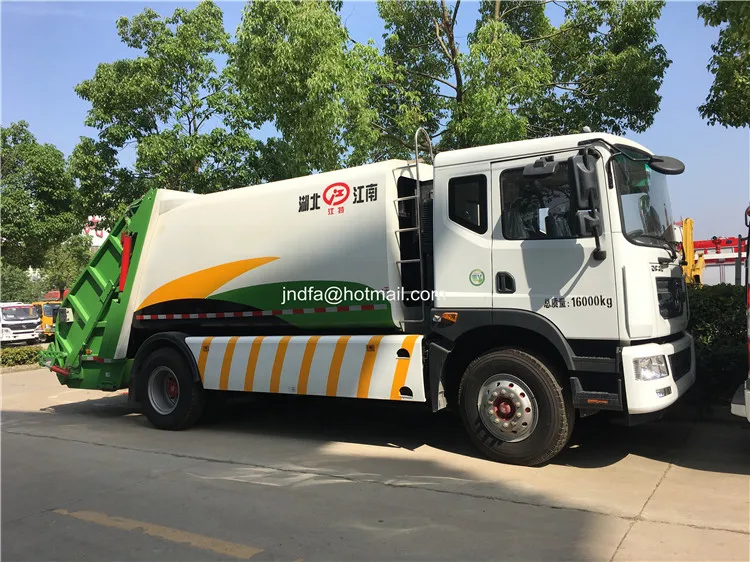

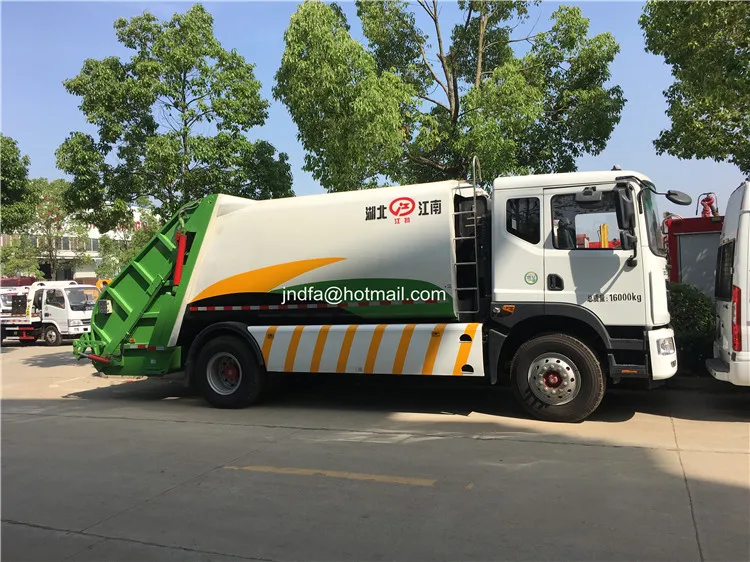

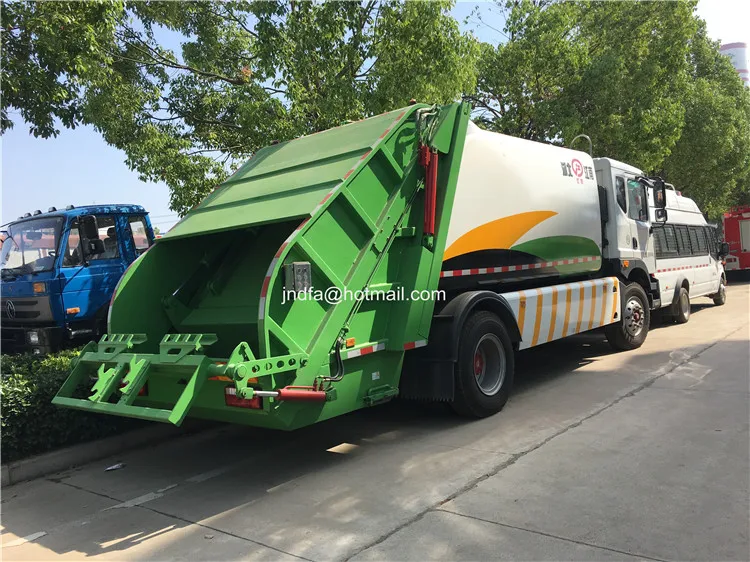

waste compactor trucks1.JPGwaste compactor trucks2.JPGwaste compactor trucks3.JPGwaste compactor trucks4.JPGwaste compactor trucks5.JPGwaste compactor trucks6.JPG
