Project Description

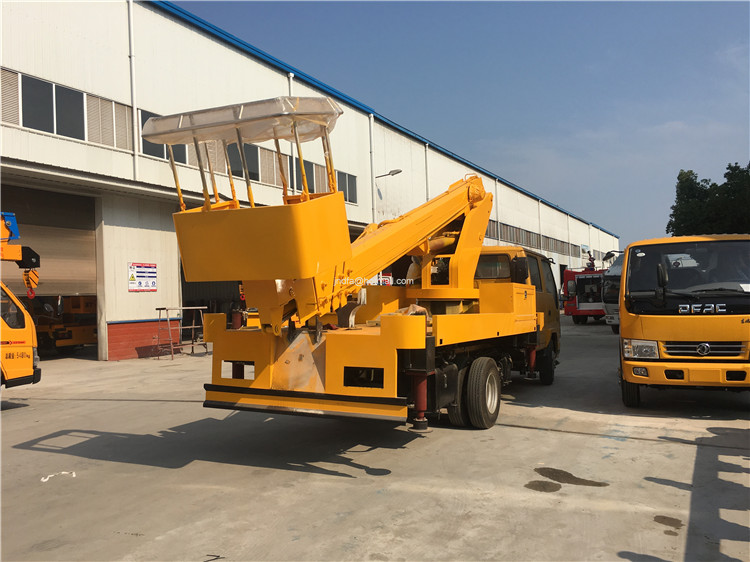

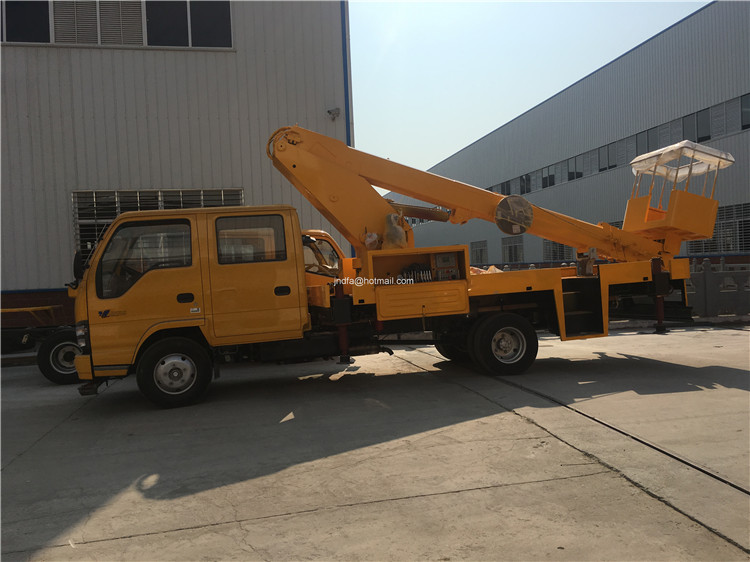

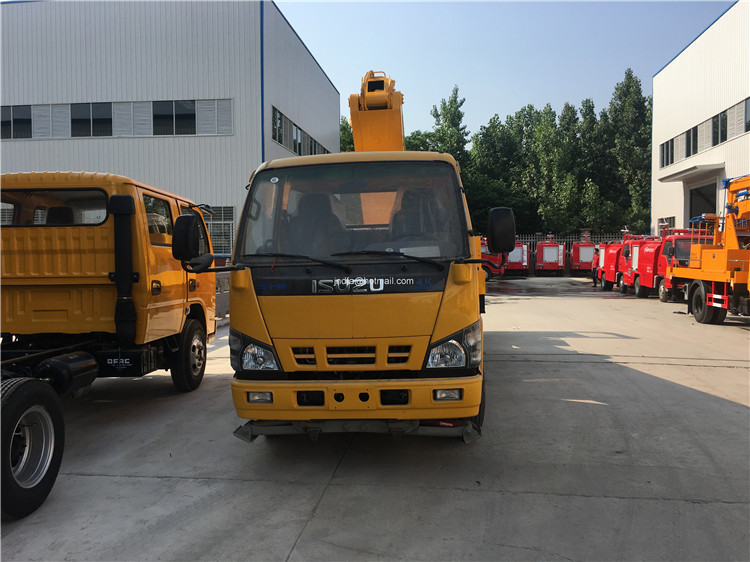

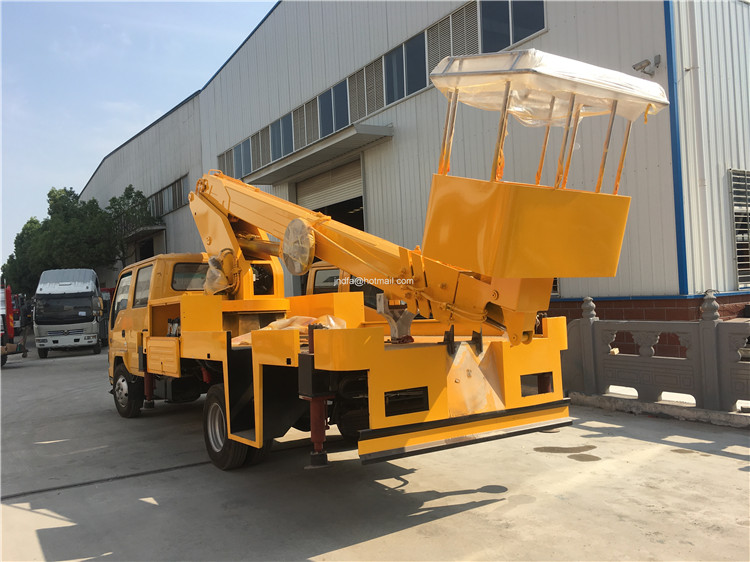

Straight arm 16m to 18m aerial lift platform truck
Aerial work vehicle is a kind of simple, safe and reliable engineering work vehicle, which is mainly composed of a car chassis and a telescopic lifting arm, a mechanical rotating part, a hydraulic power system, and a control circuit system.
The lift arm operates at a height of 14 meters, 16 meters and a load of 250 kg. Applicable to landscaping, pruning branches, street lamp maintenance, etc., can also be used for high-altitude equipment installation, maintenance, decoration, workshops, warehouses and working layers between the transport of goods up and down, production lines, special equipment for the flow of goods during the height difference Delivery of goods and loading and unloading of goods.
|
Rated mass |
Total mass |
6810 |
||||||||||
|
Cube weight |
6485 |
Fuel type |
diesel |
|||||||||
|
Emission Standards |
EURO IV |
Axis number |
2 |
|||||||||
|
Wheelbase |
3815 |
Axis load |
2090/4720 |
|||||||||
|
Number of leaf springs |
8/6+5 |
Number of tires |
6 |
|||||||||
|
Tire specifications |
7.00-16 14PR,7.00R16 14PR |
Approach/Departure angle (°) |
24/12 |
|||||||||
|
Front/rear suspension (mm) |
1015/2470 |
Front track (mm) |
1504 |
|||||||||
|
Overall size (mm) |
7950*2100*3250 |
Rear track (mm) |
1425 |
|||||||||
|
Max speed |
105 |
Passengers |
2+3 |
|||||||||
|
||||||||||||
|
Comments |
Widen front bumper with chassis option; rear extension 650mm; side protection and rear lower guard material: Q235, side guard connection: welded; rear lower guard connection: bolted, cross-section dimensions (width × height ): 30 × 180 (mm), from the ground height: 530mm. ABS model: APG3550500A4, manufacturing enterprises: Zhejiang Asia Pacific Mechanical and Electrical Co., Ltd.. |
|||||||||||
Waxed before shipping , shipped by RORO or bulk ship
Export
Brand
Hubei jiangnan special automobile co.,LTD
