ISUZU FVR Water Fire Fighting Truck,Fire Truck

ISUZU FVR Water Fire Fighting Truck,Fire Truck

ISUZU Fire Truck Engine Model 6HK1-TC,191kw ,259HP, 7790CC

JDF truck is the Chinese ISUZU Fire Truck manufacturer , ISUZU Fire Truck quality have beed approved by CCC and ISO9001:2000 quality certificate ,Contact us: jndfa@hotmail.com.

Our ISUZU Fire Truck have a wide range of chassis brand optional , different load volume to choose .

Vehicle Name: ISUZU Fire Truck Vehicle Category: ISUZU Fire Truck
Chinese Brand: ISUZU JDFTRUCK English brand : ISUZU JDFTRUCK
Notice batch : 246 Exemption: No
Engine Engine Manufacturer Displacement (ml) Power (kw)
6HK1-TC Qingling motor co., LTD 7790 191
Engine brand : ISUZU Fuel type: Diesel (mm)
Dimensions: 8025×2495×3250(mm) Compartment Size : × × (mm)
The total mass : 14970(Kg) Payload: 0
Curb weight: 9520(Kg) Rated Quality: 5000(Kg)
Quality Trailer : (kg) Semitrailer saddle :
Rated capacity : ( People ) Cab seats : 3+3( People )
Approach / departure angle : 26/13(°) Front / rear overhang : 1335/1990(mm)
Axle load: 5070/9900 Wheelbase: 4500(mm)
Number of axes: 2 Maximum speed: 95(km/h)
Fuel consumption: Spring: 9/14
Number of tires : 6 Tire Size: 10.00R20-16PR,10.00-20-16PR,11.00-20-18PR
Front track: 1960 Rear track: 1855
Brake Front: After braking :
Built before the parade : After operating system :
Steering Type : Steering wheel Starting method:
Chassis Emission standard: GB17691-2005(Ⅲ),GB3847-2005
Transmission Type: According to the standard :
Vin Vehicle Identification Number: LWLYURGK×××××××××
Logo Enterprises : JDFtruck Release date: 20160919
Vehicle Notes : ISUZU FVR Water Fire Fighting Truck,Fire Truck

ISUZU FVR Water Fire Fighting Truck,Fire Truck  Chassis

ISUZU truck chassis |ISUZU truck chassis FVR34J2
Company Name : ISUZU Motor Co., Ltd.
Chassis Type: FVR34J2 Chassis Category: II
Product Name: Truck chassis Product Brand: ISUZU
Zip Code: 400052 Catalog number : 95
Specifications: Length:7520Width:2465  Height: 2810
Fuel Type: Diesel fuel According to the standard : GB17691-2005(Ⅲ),GB3847-2005
Steering Type : Steering wheel
Number of axes: 2 Wheelbase: 4500
Spring: 9/14 Number of tires : 6
Tire Size: 10.00R20-16PR,10.00-20-16PR,11.00-20-18PR Tread : Front track 1960      Rear track 1855
The total mass : 15750
Curb weight: 5170 Quality Trailer :
Semitrailer saddle : Front passenger : 3
Close to the departure angle: 26/14 Rear suspension : 1335/1685
Maximum speed: 110

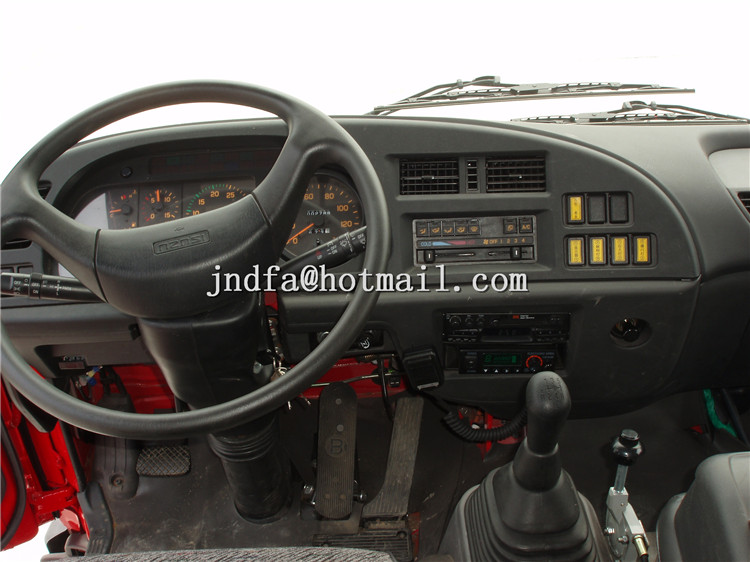

Picture: ISUZU FVR Water Fire Fighting Truck,Fire Truck

ISUZU FVR Water Fire Fighting Truck,Fire Truck

ISUZU truck chassis |ISUZU truck chassis FVR34J2 Engine Specification
Engine Model Engine Manufacturer Displacement (ML) Power (ML)
6HK1-TC Qingling motor co., LTD 7790 191
Identification code : LWLYURGK×××××××××
Other: ISUZU FVR Water Fire Fighting Truck,Fire Truck
